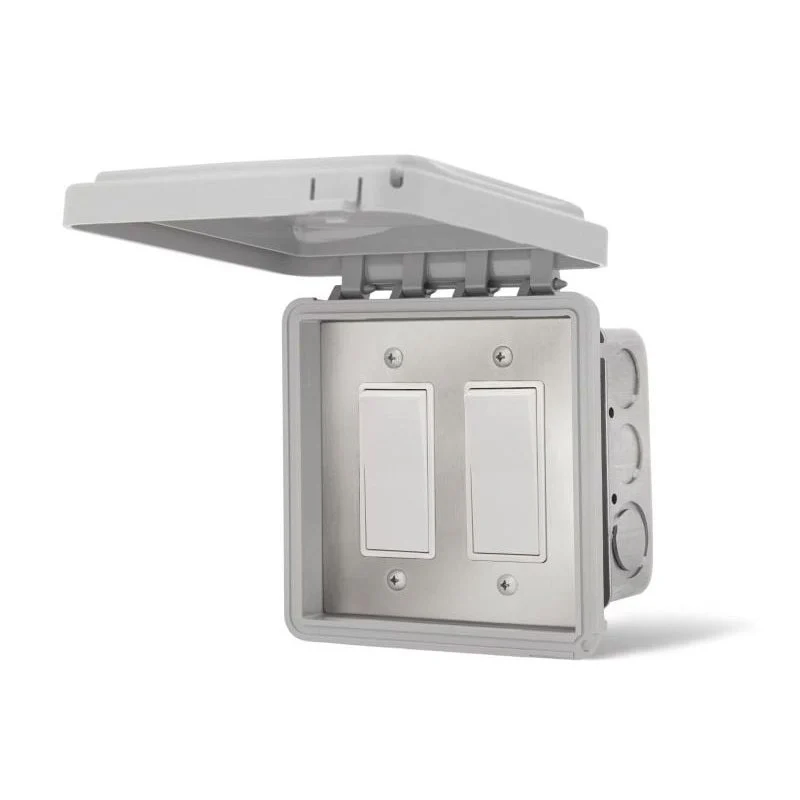

Infratech Flush Mount In-Wall Dual Stacked Duplex Switch
Infratech Flush Mount In-Wall Dual Stacked Duplex Switch
| The Infratech Flush Mount In-Wall Dual Stacked Duplex Switch provides dedicated on/off control for two WD-Series dual element heaters. The duplex stack design lets you turn each heating element on or off independently, giving you effectively three heat levels: half power (one element), full power (both elements), or off. This is the most economical control option for Infratech WD-Series dual element heaters. The switch operates at 120/277 VAC with a 20 amp maximum per switch. For indoor or protected outdoor installation areas. Professional installation by a licensed electrician is required. |
Key Features
- Controls two WD-Series dual element heaters
- Independent on/off for each element - half power, full power, or off
- 120/277 VAC - 20 amp maximum per switch
- Designed exclusively for WD-Series dual element heaters
- Flush Mount In-Wall installation
- For indoor or protected outdoor areas
- Budget-friendly control for dual element heaters
- Made in the USA | 2-year warranty
Compatibility & Configuration Guide
|
Which Heaters Work with Duplex Stack Switches? Duplex stack switches are designed exclusively for Infratech WD-Series dual element heaters (WD-3024, WD-4024, WD-5024, WD-6024 and all voltage variants). They are NOT compatible with single element heaters (C-Series, W-Series, SL-Series) or Motif Collection CD-Series heaters. How Does Half Power / Full Power Work? WD-Series heaters have two heating elements. Each duplex switch controls both elements independently. Turn on one element for approximately half heat output. Turn on both elements for full power. This gives you simple three-level control without needing a dimmer or relay panel. Single vs. Dual Switch: This dual switch controls two WD-Series heaters from one wall location. Each heater gets its own duplex pair for independent element control. Duplex Switch vs. INF Regulator: Duplex switches are for WD-Series dual element heaters only and provide half/full/off control. INF regulators are for single element heaters only and provide gradual variable heat control. Choose based on your heater type. |
Manufacturer Downloads
- Infratech Control Systems Manual
- Infratech Heater Control Options Brochure
- Infratech Heater Comparison Chart
- Infratech Reference Manual
Warranty InformationInfratech warrants that this control product is designed and manufactured to be free from defects in materials and workmanship for a period of two (2) years from the original date of purchase. This warranty covers defects in electrical components under normal use. Professional installation by a licensed electrician is required. All custom control panels are built to specification and are final sale. |
Infratech Flush Mount In-Wall Dual Stacked Duplex Switch | |
|---|---|
| Model Number | 14-4305 |
| Control Type | Duplex Stack On/Off Switch |
| Heater Capacity | Dual (2 WD-Series dual element heaters) |
| Heat Levels | Off / Half Power (1 element) / Full Power (2 elements) |
| Voltage Rating | 120/277 VAC |
| Maximum Amperage | 20 Amps per switch |
| Compatible Heaters | WD-Series dual element heaters only |
| Not Compatible With | Single element heaters (C, W, SL) or CD-Series |
| Mounting Style | Flush Mount In-Wall |
| Weatherproof | No - indoor/protected areas only |
| WiFi / Bluetooth | Not included |
| Warranty | 2-Year Manufacturer Warranty |
| Made In | USA |
