Bromic Heating Affinity Smart Heat Eclipse On-Off Control - Multiple Channels
Bromic Heating Affinity Eclipse Pendant Controls
Key Features
- Full Heat & Light Control: Manage both the heater output and LED light rail directly from your smart device.
- Wi-Fi & Bluetooth Connectivity: Control your Eclipse heaters from anywhere via the Bromic Smart-Heat™ App.
- Channel Options: Choose between 1 Channel (BH8380051) or 5 Channel (BH8380055) models based on your setup.
- Ethernet & Automation Ready: The 5 Channel model includes Ethernet and 0–10V BMS integration; expansion available for 1 Channel units.
- Smart App Integration: Available for iOS and Android, providing full dimming and scheduling options.
- Zoned Control: Create up to 6 customizable heating and lighting zones across multiple controllers.
- Rugged Outdoor Performance: IP54-rated enclosure ensures protection from dust and light moisture.
- Compact Design: Mounts easily on walls or ceilings for a clean, professional finish.
Smart Control for the Eclipse Collection
The Bromic Affinity Smart-Heat™ Eclipse Pendant Controls deliver complete, intuitive management of both heat and ambient light. Designed exclusively for Bromic’s Eclipse series heaters, this system connects to your smart device via Wi-Fi or Bluetooth, letting you adjust temperature and lighting levels with precision. Use the Bromic Smart-Heat App to set zones, timers, and brightness for the perfect outdoor experience every time.
The 1 Channel Control offers Bluetooth and Wi-Fi connectivity for individual installations, while the 5 Channel model adds Ethernet and 0–10V BMS integration for advanced control across larger venues. Both options feature durable, weather-resistant construction and are optimized for easy wall or ceiling mounting.
What's Included
- (1) Eclipse Smart-Heat™ Control System (1CH or 5CH)
- Mounting Hardware & Installation Guide
Connectivity & Compatibility
- Heater Compatibility: For Bromic Eclipse Pendant Heaters (Fixed or Portable)
- Connectivity: Wi-Fi (2.4GHz), Bluetooth, Ethernet (5CH only)
- App Support: Bromic Smart-Heat™ App (iOS / Android)
- Mounting Options: Wall or Ceiling Mount (5CH wall mount only)
Manufacturer Information
Specs & Dimensions
Bromic Heating Affinity Smart-Heat™ Eclipse Pendant Controls |
|
|---|---|
| Model | BH8380051 (1CH) / BH8380055 (5CH) |
| Channels | 1 or 5 |
| Voltage | 220–240V |
| Operating Capacity | 4kW (1CH) / 6kW, 30A Max (5CH) |
| Operating Temperature | -4°F to 86°F (-20°C to 30°C) |
| Protection Rating | IP54 |

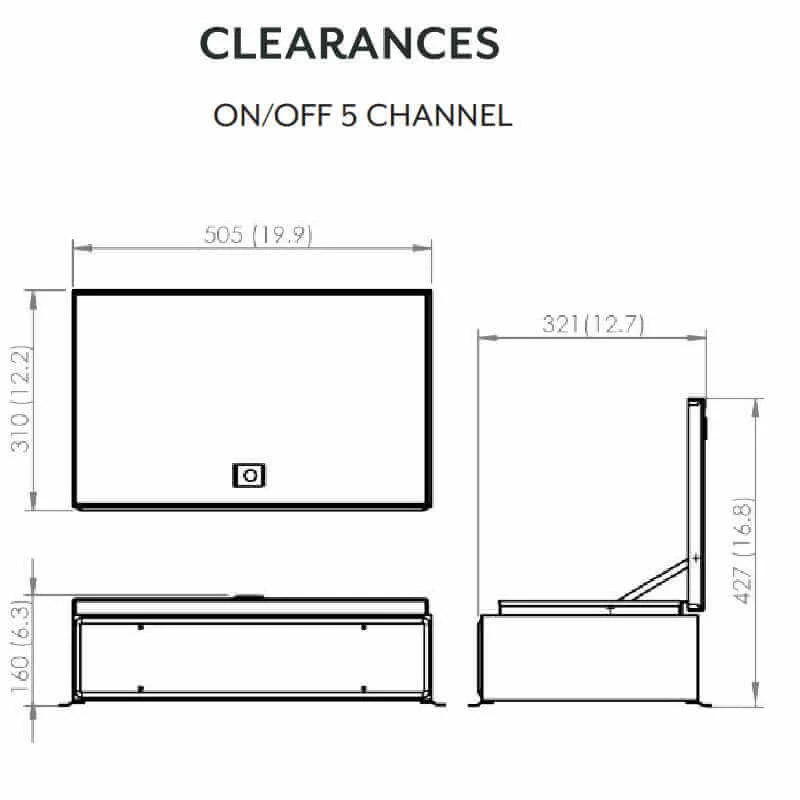

| Dimensions (L × W × H) | 1CH: 11.4" × 8.0" × 4.4" / 5CH: 19.7" × 13.4" × 10.0" |
| Weight | 1CH: 3.5 lbs / 5CH: 33.1 lbs |
| Finish | Gray |
| Mounting Type | Wall or Ceiling (5CH Wall Only) |
| Connectivity | Wi-Fi, Bluetooth, Ethernet (5CH) |
| App Compatibility | Bromic Smart-Heat™ App |
| Warranty | 1-Year Manufacturer + 1-Year BBQ Kitchen Pros |
| Made In | Australia |
