American Renaissance Grill 42 Inch 3 Burner Built In Gas Grill

---

---

Is This the Right Product for Your Outdoor Kitchen?

• This is the 42" model — The American Renaissance Grill (ARG) is a high-BTU cast stainless steel grill built for performance. Available in built-in and freestanding configurations with optional rotisserie, sear burner, and griddle accessories.

---

Key Features

• High-BTU Cast Stainless Steel Burners — ARG burners deliver exceptional heat output with the corrosion resistance of cast stainless steel. Consistent performance in salt air and coastal environments.

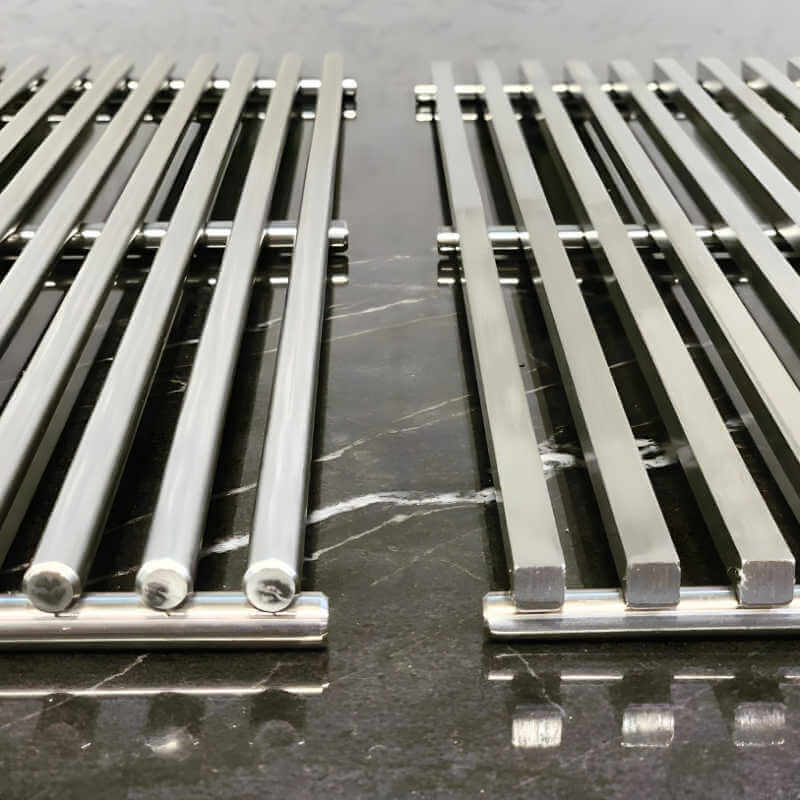

• Solid Stainless Steel Cooking Grids — heavy, non-coated grids for real sear marks and long-term durability without chipping or coating failure.
• Sure-Strike Ignition — reliable individual spark ignition per burner.
• Compatible with Optional Accessories — the ARG platform accepts the infrared sear burner (AIR303642), rotisserie kits (ARG30/36/42ROTISS), and dual-plate griddles (ASG1, ASG2) for expanded cooking capabilities.
• Field-Convertible NG/LP — configured for your chosen fuel type. Convertible in the field without replacing the grill.

---

Documentation

Owner's Manual (PDF)

Cut-Out Dimensions (PDF)

Warranty Information (PDF)

---

Warranty

15-year limited warranty to the original owner against manufacturing defects in materials and workmanship. Briquette trays: lifetime warranty.

---

Specs & Dimensions

American Renaissance Grill 42-Inch 3 Burner Built-In Gas Grill
Models	ARG42
Material	304 Stainless Steel
Fuel Type	Natural Gas or Propane
Configuration	Built In
Collection	American Renaissance Grills
Material	304 Stainless Steel
Dimensions	Width: 42" Depth: 27.85" Height: 25.5"
Weight	234 Lbs.
Cut Out Dimensions	Cut Out Width: 40 5/8" Cut Out Depth: 23 1/4" Cut Out Height: 10 1/4"
Main Burner Material	304 Stainless Steel
Number of Burners	3
Burner Type	U-Shaped Burners
Total Grilling BTUs	75,000 BTUs
Total BTUs Per Burner	25,000 BTUs
Cooking Grate Material	304 Stainless Steel
Cooking Grate Type	Sear Marx Cooking Grates
Warming Rack Type	2-Position Warming Rack
Total Grilling Area	1082 Sq. In
Main Grilling Area	770 Sq. In
Secondary Grilling Area	312 Sq. In
Grilling Grid Dimensions	39 3/4" X 19 3/8"
Burger Count	32
Rotisserie Kit	Available
Rotisserie Burner	None
Ignition Type	Single Spark System
Flash Tubes	Yes
Gas Hose Included	No
Spring Assisted Hood	Yes
Thermometer	Analog
Ceramic Briquette Trays	Included
Number of Ceramic Briquette Trays	3
Pull-Out Grease Drip Tray	Included
Grilling Lights	Internal/External Lights
Interior Grilling Lights	Built-In Halogen Lights
Exterior Grilling Lights	Blue LED Lights on Control Panel
Made in the USA	Yes
